Mounting kit for support handle, White cap

This mounting kit is compatible with the support handles listed under "Add-Ons" above.

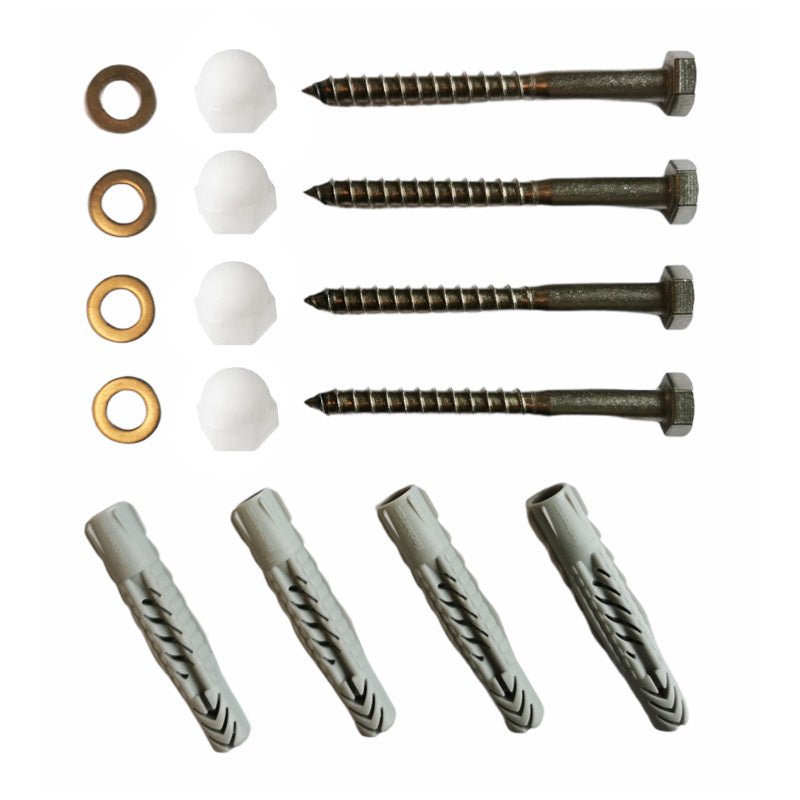

The set contains the following parts:

• 4 pcs. Nylon plug Fischer, Ø 10 x 60 mm
• 4 pcs. French screw DIN 571 A2, 8 x 80 mm
• 4 pcs. Stainless washer DIN 125
• 4 pcs. White cover caps nv 13

How to Install Your Wall Bar:

1. Hold the wall bar at your chosen spot and use a pencil to mark the drill holes through the mounting points.
2. Drill 4 holes, each Ø 10 mm and at least 80 mm deep. Insert the nylon plugs (A) into the wall using a hammer, ensuring they’re snug and undamaged.
3. Place the washers (C) on the French screws (B), then drive the screws through the bar’s holes and tighten securely.
4. Snap the Cover caps (D) onto the screw heads for a neat finish.

IMPORTANT! Before using the wall bar, make sure it remains completely stable, even under heavy load. It’s the installer's responsibility to ensure the wall bar is mounted securely, and that the type and condition of the wall are suitable for this mounting kit.
